Stereo Zoom Microscope KERN OZM 543
First-class optics combined with a high level of flexibility
List price
9.999,00 €
Technical Datasheet
Optical System
Greenough
Tube
Trinocular
Eyepiece
Eyepiece HSWF 10x / Ø 23mm with anti-fungus, high eye point
Objectives
0,7x - 4,5x
| Standard | ||
|---|---|---|
     |
Description
- The KERN OZM-5 series is a range of excellent stereo zoom microscopes with above-average optical features.
- The ergonomic shape allows a simple, effortless working over a period of several hours.
- With its large working distance, an extra large field of view and its brilliant resolution, the KERN OZM provides sharp, high-contrast, colour-true images.
- As standard this microscope offers you continuous total magnification of 7x–45x
- The pillar stand is particularly flexible due to its variable and sturdy adjustment mechanism and therefore enables ergonomic working procedures.

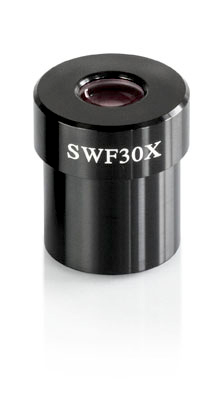

- A large selection of eyepieces, (universal) stands, a darkfield kit, external illumination units as well as auxiliary objectives and more are available as accessories

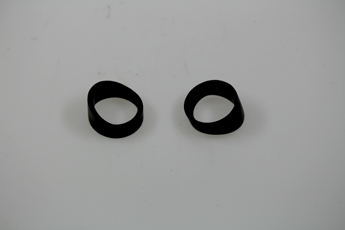

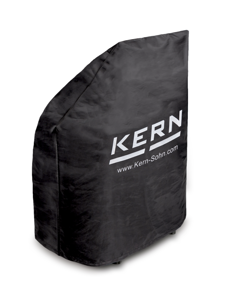

- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery
Specifications
Article codes, product groups & Status information
Model article-code
:
OZM 543
Model-Serie
:
OZM-5
Assortment
:
Optics
Product Type
:
Microscopes
Product group
:
Stereo microscopes
Product usage type
:
Component
EAN code (Model)
:
4045761169296
Planned start date
:
2015-1HJ
Customs tariff number
:
90111000
Model Status
:
Discontinued
CE Label
:
Yes
Country of Origin
:
CN
Technical data - Power supply
Protection Class
:
Class III - Low voltage
Technical data - Packing & Shipping
Packaging component - by weight - paper
:
0 g
Packaging component - by weight - cardboard
:
779,78 g
Packaging component - by weight - plastics
:
24,13 g
Packaging component - by weight - styrofoam
:
466,09 g
Packaging component - by weight - foam
:
0 g
Delivery time
:
1 d
Dimensions packaging (W×D×H)
:
385×370×330 mm
Gross weight
:
5,0 kg
Net weight
:
3,8 kg
Shipping method
:
Parcel service
Technical data - Primary
Optical System
:
Greenough
Tube
:
Trinocular
Eyepiece
:
Eyepiece HSWF 10x / Ø 23mm with anti-fungus, high eye point
Objectives
:
0,7x - 4,5x
Technical data - Environmental conditions
Storage Temp Min
:
-5 °C
Stotage Temp Max
:
40 °C
Technical data - Verification
WEEE
:
Yes
Responsible Persons
Product manager
:
Johannes Conradt
Prices & Discounts
List price
:
9.999,00 €
List price, next year
:
1.250,00 €
Warranty
:
36 mon
Technical data - Illumination
Transmitted light type
:
None
Technical data - Construction
System
:
Upright
Tube angle
:
45°
Tube rotation
:
Yes
Stand type
:
Pillar
Stand area
:
283×292 mm
Holder diameter
:
76 mm
Eye distance (max)
:
76 mm
Eye distance (min)
:
52 mm
Adjustable dioptre
:
Both-sided
Focusing mechanics
:
Coarse drive
Visual field min
:
5,1 mm
Visual field max
:
32,8 mm
Working distance
:
110 mm
Sample height max
:
130 mm
Max resolution
:
4,6 mm
Dimensions (W×D×H)
:
330×285×440 mm
