C-Mount Camera – HDMI KERN ODC 852
Available from stock

Specialists in microscopy for measurement, counting, documentation, archiving and image processing

List price
1.100,00 €

Camera type

HDMI Microscope Camera (AF) - C-Mount

Camera resolution

5 MP

Sensor type

Sony CMOS

Sensor size

1/1,8"

Standard
Description
  • The HDMI autofocus camera ODC 852 offers you a perfect, effective solution for modern microscopy. The autofocus function automatically detects and adjusts the focus level so that you always have a razor-sharp image. Ideal for all applications in connection with a KERN stereo microscope
  • Realtime images n the ODC 852 can be transferred to an HDMI-compatible display device using the HDMI connection and they can also be stored on the SD card which was delivered with the product. As an alternative, data can also be transferred using the WiFi module (ODC 852) to a PC or laptop in combination with the KERN OXM 902 software which is included with the delivery

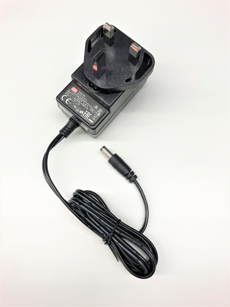

  • Power supply is from an external 12 V power unit

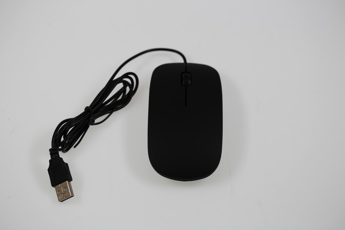

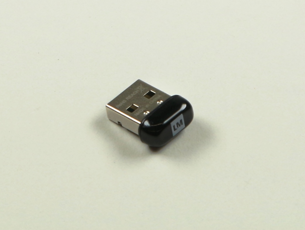

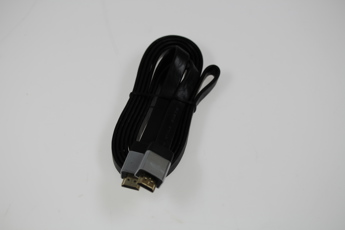

  • Scope of delivery ODC 852: Camera, USB mouse, USB 2.0 cable (length: 2 m), HDMI cable (length: 2 m), SD card (16 GB), WiFi adapter and camera software Microscope VIS Pro KERN OXM 902
  • Please order the appropriate C-mount adapter to fit your KERN microscope now
Specifications

Article codes, product groups & Status information

Model article-code
:
ODC 852
Model-Serie
:
ODC-85
Assortment
:
Optics
Product Type
:
Microscopes
Product group
:
Microskope cameras
Product usage type
:
Main item;Accessories/Services
EAN code (Model)
:
4045761235731
Planned start date
:
2020-1HJ
Customs tariff number
:
90119000
Model Status
:
Active
CE Label
:
Yes
Country of Origin
:
CN

Technical data - Environmental conditions

Storage Temp Min
:
-5 °C
Stotage Temp Max
:
40 °C

Prices & Discounts

List price
:
1.100,00 €
List price, next year
:
1.100,00 €
Warranty
:
36 mon

Technical data - Primary

Camera type
:
HDMI Microscope Camera (AF) - C-Mount
Camera resolution
:
5 MP
Sensor type
:
Sony CMOS
Sensor size
:
1/1,8"

Technical data - Power supply

Power supply kind
:
Power adapter
Input Voltage
:
100 V - 240V AC 50/60Hz 0,3A
Power Plug
:
Inside plus, outside minus
Protection Class
:
Class III - Low voltage
Cable attachment
:
Removable

Technical data - Verification

WEEE
:
Yes

Responsible Persons

Product manager
:
Alexander Beck

Technical data - Construction

Color capability
:
Colour
Camera mounting
:
C-Mount
Auto focus
:
Yes
Interfaces
:
HDMI;SD Kartenslot;USB 2.0;WLAN
Opertaing system
:
Win 10;Win 11;Win 8
Applicable software
:
Integrierte Kamerasoftware (HDMI);Microscope VIS 2.0 Pro (OXM 902)
Dimensions (W×D×H)
:
92×68×68 mm

Technical data - Packing & Shipping

Packaging component - by weight - paper
:
0 g
Packaging component - by weight - cardboard
:
558 g
Packaging component - by weight - plastics
:
12 g
Packaging component - by weight - styrofoam
:
0 g
Packaging component - by weight - glass
:
0 g
Packaging component - by weight - wood
:
0 g
Packaging component - by weight - foam
:
88 g
Packaging component - by weight - metal
:
0 g
Delivery time
:
1 d
Dimensions packaging (W×D×H)
:
225×170×90 mm
Gross weight
:
1,8 kg
Net weight
:
1,00 kg
Shipping method
:
Parcel service
Software
No records found
Downloads
Document name Language
Declaration of Conformity German English French Italian Spanish Czech More
Operating instructions German English
Operating instructions (nicht beilegen, nur auf Anfrage versenden) German English
Operating instructions (short version) English
Single product brochure English French Italian Spanish
Technical Datasheet German English French Italian Spanish
Product brochure German English French Italian Spanish
