C-Mount Camera – USB 3.0 KERN ODC 832
Available from stock

Specialists in microscopy for measurement, counting, documentation, archiving and image processing

List price
560,00 €

Camera type

USB3 Microscope camera - C-Mount

Camera resolution

5,1 MP

Sensor type

Aptina CMOS

Sensor size

1/2,5"

Standard
Description
  • The universal microscope camera can be used anywhere and can be connected to the microscope as well as to a laptop or PC using the USB cable (USB 3.0)
  • Through the proven CMOS technology, in connection with the USB 3.0 the images are shown quickly and clearly
  • These cameras are also ideal for more demanding applications, such as, for example, darkfield, phase contrast and for fluorescence applications
  • Your daily work is made significantly easier with the very best synchronisation, a high frame rate as well as stable image performance together with our Microscope VIS software which we deliver with the product.
  • The power supply is through the USB cable, which means that no additional power supply is required

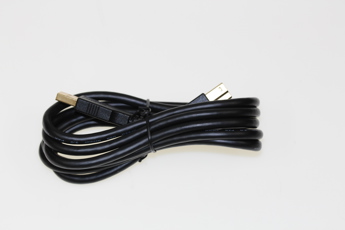

  • As well as the camera, the delivery includes our multi-lingual KERN Microscope VIS Basic KERN OXM 901, a USB cable (Length: 2000 mm) various eyepiece adapters and an object micrometer to calibrate the software
  • Please order the appropriate C-mount adapter to fit your KERN microscope now
Specifications

Article codes, product groups & Status information

Model article-code
:
ODC 832
Model-Serie
:
ODC-83
Assortment
:
Optics
Product Type
:
Microscopes
Product group
:
Microskope cameras
Product usage type
:
Main item;Accessories/Services
EAN code (Model)
:
4045761190474
Predecessor Model
:
ODC 831
Planned start date
:
2016-1HJ
Customs tariff number
:
90119000
Model Status
:
Active
CE Label
:
Yes
Country of Origin
:
CN

Technical data - Primary

Camera type
:
USB3 Microscope camera - C-Mount
Camera resolution
:
5,1 MP
Sensor type
:
Aptina CMOS
Sensor size
:
1/2,5"

Technical data - Power supply

Power Plug
:
USB B
Protection Class
:
Class III - Low voltage

Technical data - Packing & Shipping

Packaging component - by weight - paper
:
0 g
Packaging component - by weight - cardboard
:
342,022 g
Packaging component - by weight - plastics
:
12,0959 g
Packaging component - by weight - styrofoam
:
0 g
Packaging component - by weight - foam
:
62,9821 g
Delivery time
:
1 d
Dimensions packaging (W×D×H)
:
164×164×75 mm
Gross weight
:
1,00 kg
Net weight
:
0,60 kg
Shipping method
:
Parcel service

Technical data - Construction

Color capability
:
Colour
Camera mounting
:
C-Mount
Interfaces
:
USB 3.0
Opertaing system
:
Win 10;Win 11;Win 8
Applicable software
:
Microscope VIS 2.0 Pro (OXM 902)
Dimensions (W×D×H)
:
80×80×45 mm

Technical data - Environmental conditions

Storage Temp Min
:
-5 °C
Stotage Temp Max
:
40 °C

Technical data - Verification

WEEE
:
Yes

Responsible Persons

Product manager
:
Alexander Beck

Prices & Discounts

List price
:
560,00 €
List price, next year
:
560,00 €
Warranty
:
36 mon
