Stereo Zoom Microscope KERN OZL 963U
First-class optics and strong illumination combined with a high level of flexibility
List price
9,999.00 €
Technical Datasheet
Optical System
Greenough
Tube
Trinocular
Eyepiece

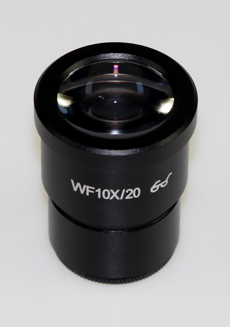

Eyepiece HWF 10x / Ø 20mm High Eye Point
Objectives
0.7x - 4.5x
Description
- Sets which have already been defined, consisting of a stereo microscope head, a universal stand, a holder, a ring illumination and a dust cover from our range
- Simple – convenient – affordable
- This saves you spending time on configuration and being spoilt for choice in the combination of different components. In this way you get an in expensive and highly-flexible solution for your microscope workplace.
- The KERN OZL-963 is a stereo zoom microscope, which will impress you with the easy handling, flexibility as well as the stability and economical price
- The LED incident illumination unit (ring) included as standard guarantees the very best illumination of your sample
- As well as excellent optical characteristics and their large working surface, these models offer the highest level of comfort in this class – ideal for training companies, workshops as well as assembly and repair workstations, e.g. in the electronics industry.
- Objective: 0,7x – 4,5x

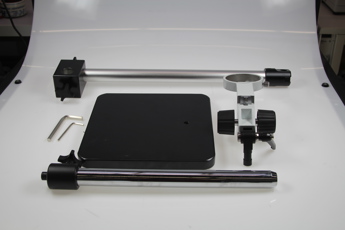

- The universal telescopic arm stand gives you a high level of flexibility. Particularly suitable for large samples and free work under the microscope
Specifications
Article codes, product groups & Status information
Model article-code
:
OZL 963U
Model-Serie
:
OZL-9U
Assortment
:
Optics
Product Type
:
Microscopes
Product group
:
Stereo microscopes
Product usage type
:
Trade parts list element
EAN code (Model)
:
4045761189409
Planned start date
:
Unbestimmt-1HJ
Customs tariff number
:
90111000
Model Status
:
Active
CE Label
:
Yes
Technical data - Power supply
Protection Class
:
No protection class
Technical data - Packing & Shipping
Packaging component - by weight - paper
:
0 g
Packaging component - by weight - cardboard
:
1040.39 g
Packaging component - by weight - plastics
:
9.51 g
Packaging component - by weight - styrofoam
:
852.096 g
Packaging component - by weight - foam
:
0 g
Delivery time
:
1 d
Dimensions packaging (W×D×H)
:
820×420×230 mm
Gross weight
:
20 kg
Net weight
:
19 kg
Shipping method
:
Parcel service
Technical data - Primary
Optical System
:
Greenough
Tube
:
Trinocular
Eyepiece
:
Eyepiece HWF 10x / Ø 20mm High Eye Point
Objectives
:
0.7x - 4.5x
Technical data - Environmental conditions
Storage Temp Min
:
-5 °C
Stotage Temp Max
:
40 °C
Technical data - Verification
WEEE
:
Yes
Responsible Persons
Product manager
:
Johannes Conradt
Prices & Discounts
List price
:
9,999.00 €
Warranty
:
36 mon
Technical data - Construction
System
:
Upright
Tube angle
:
45°
Tube rotation
:
Yes
Stand type
:
Universal (telescopic arm with plate)
Holder diameter
:
76 mm
Eye distance (max)
:
75 mm
Eye distance (min)
:
55 mm
Adjustable dioptre
:
Both-sided
Focusing mechanics
:
Coarse drive
Visual field min
:
4.4 mm
Visual field max
:
28,6 mm
Working distance
:
100 mm
Sample height max
:
140 mm
Max resolution
:
3.7 mm
Dimensions (W×D×H)
:
665×255×410 mm

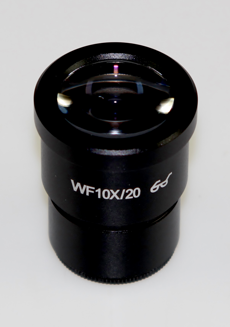

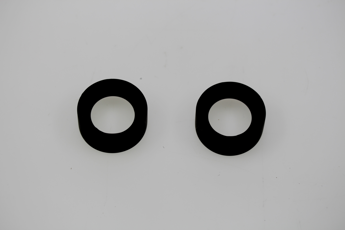

Accessories
