Metallurgical Inverted Microscope KERN OLM 171
Available from stock

The inverted metallurgical microscope for professional applications

List price
3950.00 €

Optical System

Infinity

Tube

Trinocular

Eyepiece

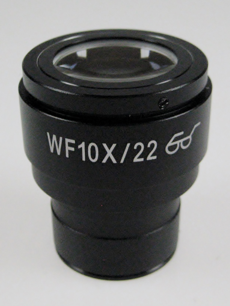

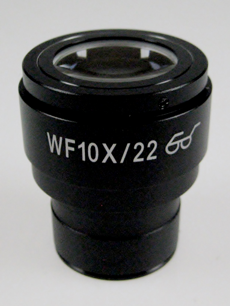

Eyepiece HWF 10x / Ø 22mm with anti-fungus, high eye point

Illumination

50W Halogen (Auflicht)

Standard
Description
  • The KERN OLM range is part of the range of inverted microscopes and stands out through its design which is ergonomic, robust and extremely stable. This range, with its large working distance is, for example, particularly suitable for surface quality testing of raw materials and finished products in industry

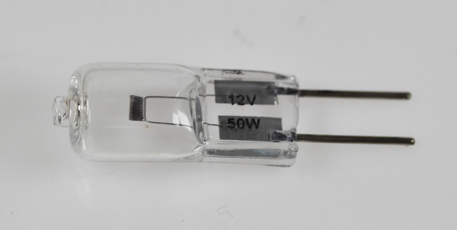

  • Strong and continuously adjustable 50 W Halogen illumination unit ensures the optimum illumination of the materials to be tested
  • As standard, the OLM range is fitted with a trinocular eyepiece tube
  • A simple polarising unit (analyser and polariser) is included with delivery
  • A large mechanical stage is included with delivery as standard. The coarse and fine focusing knob on both sides guarantees optimal adjustment and focusing.

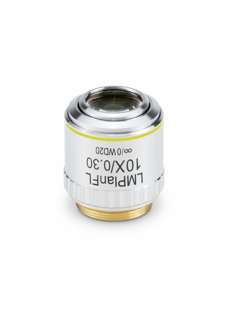

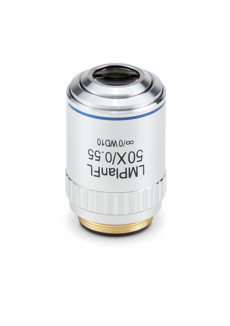

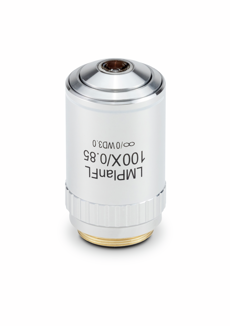

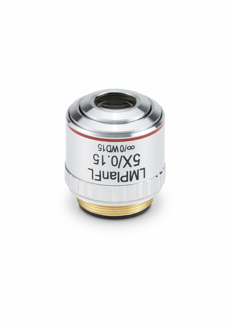

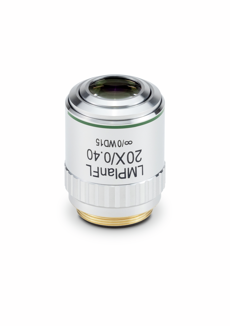

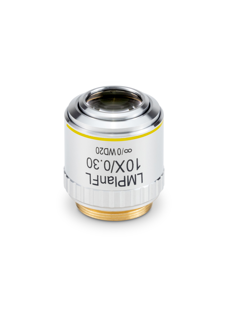

  • Further options such as, for example, a large selection of objectives can be integrated as accessories

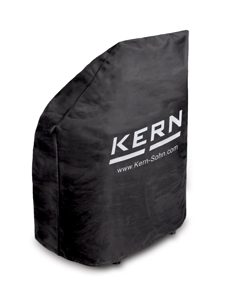

  • A dust cover as well as user instructions are included with the delivery
Specifications

Article codes, product groups & Status information

Model article-code
:
OLM 171
Model-Serie
:
OLM-1
Assortment
:
Optics
Product Type
:
Microscopes
Product group
:
Metallurgical microscopes
Product usage type
:
Main article
EAN code (Model)
:
4045761267602
Predecessor Model
:
OLM 171-2022a
Planned start date
:
2023-2HJ
Customs tariff number
:
90118000
Product status
:
Active
CE Label
:
Yes

Technical data - Power supply

Power supply kind
:
Built-in power supply
Input Voltage
:
100 - 240 V
Power Plug
:
Cold device cable
Protection Class
:
Protection class I - protective conductor
Cable attachment
:
Removable

Technical data - Illumination

Illumination directions
:
Reflected light
Incident light type
:
Halogen
Incident light intensity
:
50W
Dimmable
:
Incident light

Technical data - Primary

Optical System
:
Infinity
Tube
:
Trinocular
Eyepiece
:
Eyepiece HWF 10x / Ø 22mm with anti-fungus, high eye point
Illumination
:
50W Halogen (Auflicht)

Technical data - Environmental conditions

Storage Temp Min
:
-5 °C
Stotage Temp Max
:
40 °C

Technical data - Packing & Shipping

Packaging component - by weight - paper
:
0 g
Packaging component - by weight - cardboard
:
2999.81 g
Packaging component - by weight - plastics
:
28.224 g
Packaging component - by weight - styrofoam
:
999.936 g
Packaging component - by weight - foam
:
0 g
Delivery time
:
1 d
Dimensions packaging (W×D×H)
:
660×590×325 mm
Gross weight
:
17 kg
Net weight
:
13 kg
Shipping method
:
Parcel service

Technical data - Construction

System
:
Inverse
Tube type
:
Siedentopf
Tube angle
:
30°
Nosepiece positions
:
5
Eye distance (max)
:
76 mm
Eye distance (min)
:
48 mm
Adjustable dioptre
:
Both-sided
Focusing mechanics
:
Coaxial coarse and fine drive
Fine drive minimum
:
0.002 mm
Table size
:
210×180 mm
Table traveling distance
:
50×50 mm
Condenser Type
:
Standard
Condenser mounting
:
Fixed
Dimensions (W×D×H)
:
747×271×379 mm

Technical data - Verification

WEEE
:
Yes

Responsible Persons

Product manager
:
Johannes Conradt

Prices & Discounts

List price
:
3950.00 €
Warranty
:
36 mon
