Metallurgical Inverted Microscope KERN OLM 170
Available from stock

The inverted metallurgical microscope for professional applications

List price
3000.00 €

Optical System

Infinity

Tube

Trinocular

Eyepiece

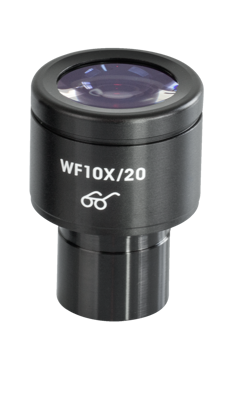

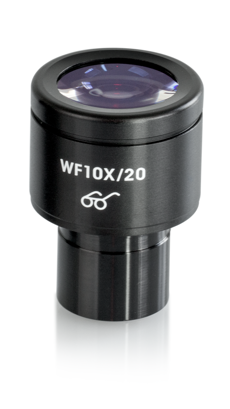

Eyepiece HWF 10 x / Ø 20mm with anti-fungus, high eye point

Standard Objectives

10x;20x;50x;5x

Objective quality

Infinity Plan

Illumination

5W LED (Auflicht)

Standard
Description
  • The KERN OLM range is part of the range of inverted microscopes and stands out through its design which is ergonomic, robust and extremely stable. This range, with its large working distance is, for example, particularly suitable for surface quality testing of raw materials and finished products in industry

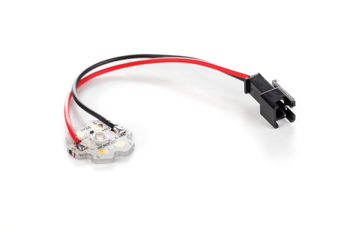

  • Strong and continuously adjustable 5 W LED illumination unit ensures the optimum illumination of the materials to be tested
  • As standard, the OLM range is fitted with a trinocular eyepiece tube

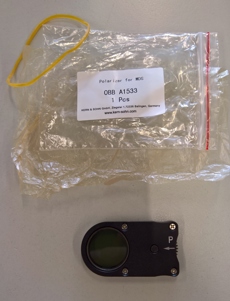

  • A simple polarising unit (analyser and polariser) is included with delivery
  • A large mechanical stage is included with delivery as standard. The coarse and fine focusing knob on both sides guarantees optimal adjustment and focusing.
  • The compact design of the OLM 170 means that handling is even easier and more flexible for the user, so this model can also be considered for mobile applications. In the same way, the pre-installed C-Mount Adapter (on the back of the microscope) also makes operation easier, as connecting the camera is even easier

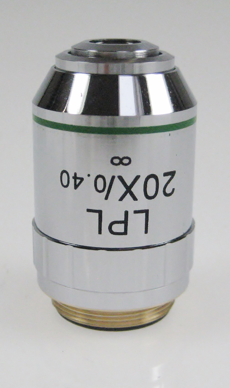

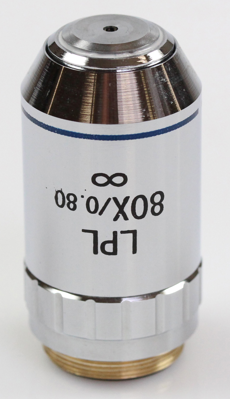

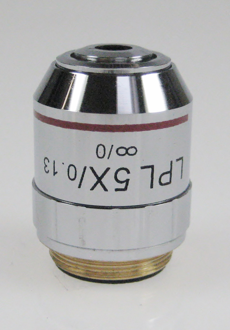

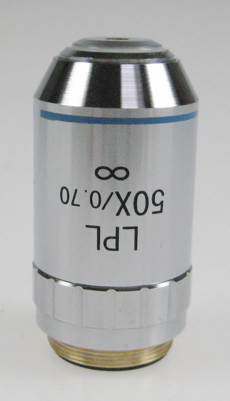

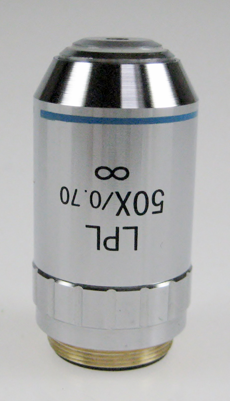

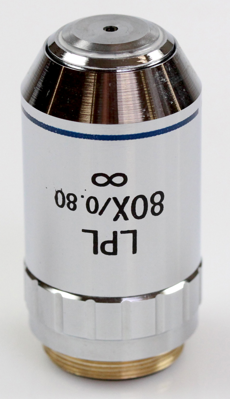

  • Further options such as, for example, a large selection of objectives can be integrated as accessories
  • A dust cover as well as user instructions are included with the delivery
Specifications

Article codes, product groups & Status information

Model article-code
:
OLM 170
Model-Serie
:
OLM-1
Assortment
:
Optics
Product Type
:
Microscopes
Product group
:
Metallurgical microscopes
Product usage type
:
Main article
EAN code (Model)
:
4045761356665
Planned start date
:
2023-1HJ
Customs tariff number
:
90118000
Product status
:
Active
CE Label
:
Yes

Technical data - Power supply

Power supply kind
:
Power adapter
Input Voltage
:
100 V - 240 V, 50 / 60 Hz
Power Plug
:
Inside plus, outside minus
Protection Class
:
Class III - Low voltage
Cable attachment
:
Removable

Prices & Discounts

List price
:
3000.00 €
Warranty
:
36 mon

Technical data - Primary

Optical System
:
Infinity
Tube
:
Trinocular
Eyepiece
:
Eyepiece HWF 10 x / Ø 20mm with anti-fungus, high eye point
Standard Objectives
:
10x;20x;50x;5x
Objective quality
:
Infinity Plan
Illumination
:
5W LED (Auflicht)

Technical data - Environmental conditions

Storage Temp Min
:
-5 °C
Stotage Temp Max
:
40 °C

Technical data - Packing & Shipping

Packaging component - by weight - cardboard
:
1130 g
Packaging component - by weight - plastics
:
36 g
Packaging component - by weight - styrofoam
:
770 g
Delivery time
:
1 d
Dimensions packaging (W×D×H)
:
500×420×300 mm
Gross weight
:
9 kg
Net weight
:
7 kg
Shipping method
:
Parcel service

Technical data - Illumination

Illumination directions
:
Reflected light
Incident light type
:
LED
Incident light intensity
:
5W
Dimmable
:
Incident light

Technical data - Construction

System
:
Inverse
Tube type
:
Butterfly
Tube angle
:
45°
Nosepiece positions
:
4
Eye distance (max)
:
75 mm
Eye distance (min)
:
48 mm
Adjustable dioptre
:
One-sided
Focusing mechanics
:
Coaxial coarse and fine drive
Fine drive minimum
:
0.002 mm
Table size
:
155×180 mm
Table traveling distance
:
75×40 mm
Aperture diaphragm
:
Yes
Condenser Type
:
Standard
Condenser mounting
:
Fixed
Dimensions (W×D×H)
:
470×240×330 mm

Technical data - Verification

WEEE
:
Yes

Responsible Persons

Product manager
:
Johannes Conradt
Software
No records found
Your KERN product specialist will be happy to help
