Stereo Zoom Microscope KERN OZM 541
Delivery date on request
First-class optics and strong illumination combined with a high level of flexibility
List price
9999.00 €
Technical Datasheet
Optical System
Greenough
Tube
Binocular
Eyepiece
Eyepiece HSWF 10 x / Ø 23mm with anti-fungus, high eye point
Objectives
0.7 x - 4.5 x
| Standard | Option | ||
|---|---|---|---|
         |
 |
Description
No records found
Specifications
Article codes, product groups & Status information
Model article-code
:
OZM 541
Model-Serie
:
OZM-5
Assortment
:
Optics
Product Type
:
Microscopes
Product group
:
Stereo microscopes
Product usage type
:
Trade parts list element
EAN code (Model)
:
4045761169272
Planned start date
:
2015-1HJ
Customs tariff number
:
90111000
Product status
:
Active
CE Label
:
Yes
Technical data - Power supply
Protection Class
:
Class III - Low voltage
Technical data - Packing & Shipping
Packaging component - by weight - paper
:
0 g
Packaging component - by weight - cardboard
:
779.78 g
Packaging component - by weight - plastics
:
24.13 g
Packaging component - by weight - styrofoam
:
466.09 g
Packaging component - by weight - foam
:
0 g
Delivery time
:
1 d
Dimensions packaging (W×D×H)
:
385×370×330 mm
Gross weight
:
5 kg
Net weight
:
3.8 kg
Shipping method
:
Parcel service
Technical data - Primary
Optical System
:
Greenough
Tube
:
Binocular
Eyepiece
:
Eyepiece HSWF 10 x / Ø 23mm with anti-fungus, high eye point
Objectives
:
0.7 x - 4.5 x
Technical data - Environmental conditions
Storage Temp Min
:
-5 °C
Stotage Temp Max
:
40 °C
Technical data - Verification
WEEE
:
Yes
Responsible Persons
Product manager
:
Johannes Conradt
Prices & Discounts
List price
:
9999.00 €
Warranty
:
36 mon
Technical data - Illumination
Transmitted light type
:
None
Incident light type
:
None
Technical data - Construction
System
:
Upright
Tube angle
:
45°
Tube rotation
:
Yes
Stand type
:
Pillar
Stand area
:
283×292 mm
Holder diameter
:
76 mm
Eye distance (max)
:
76 mm
Eye distance (min)
:
52 mm
Adjustable dioptre
:
Both-sided
Focusing mechanics
:
Coarse drive
Visual field min
:
5.1 mm
Visual field max
:
32,8 mm
Working distance
:
110 mm
Sample height max
:
130 mm
Max resolution
:
4.6 mm
Dimensions (W×D×H)
:
330×285×440 mm

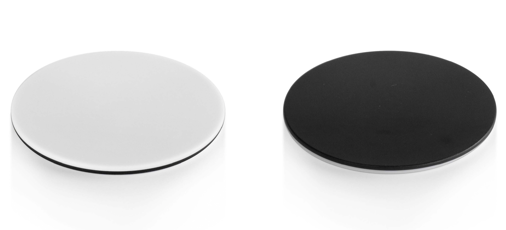

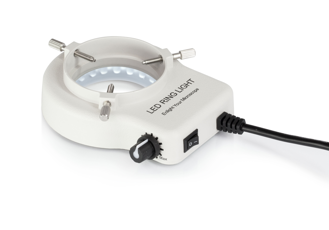

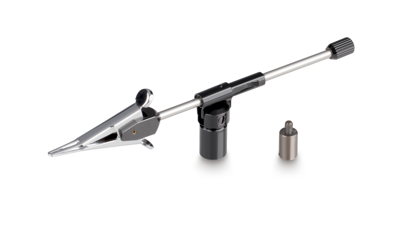

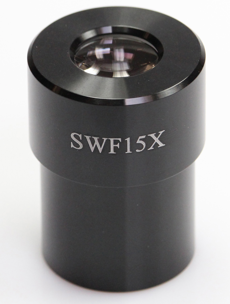

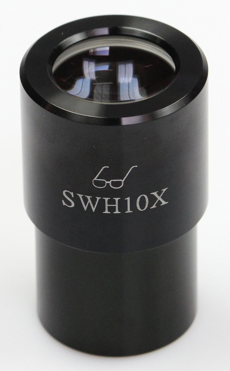

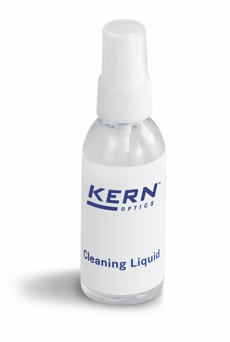

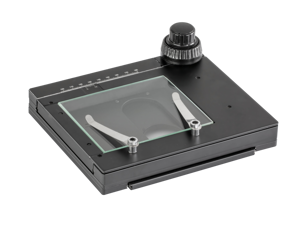

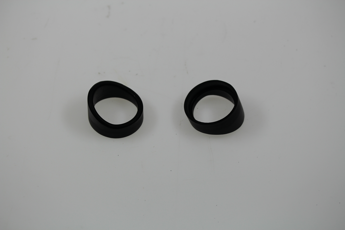

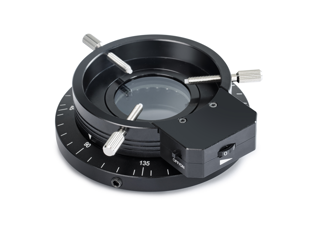

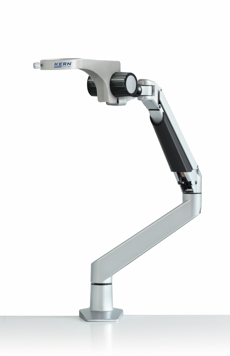

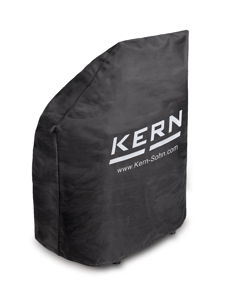

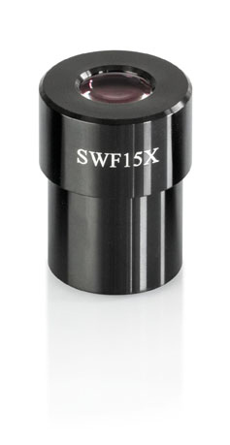

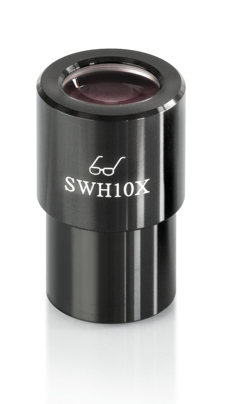

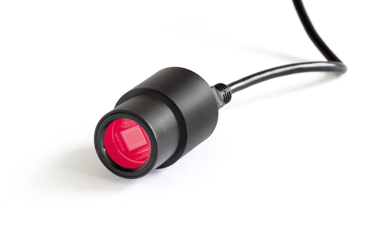

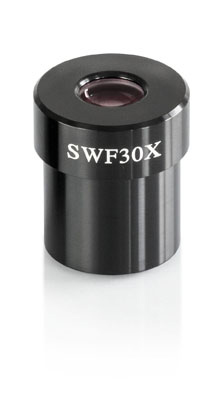

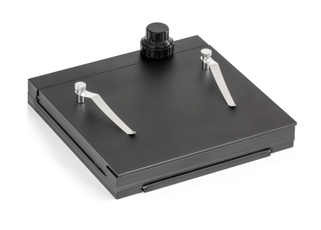

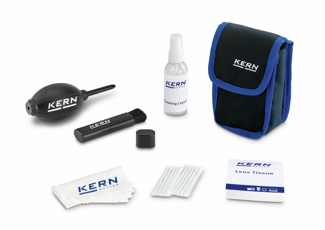

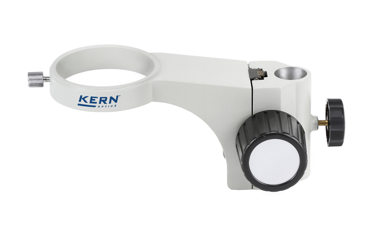

Accessories
