School Balance KERN EMB 200-3V
Available from stock

School balance with integrated density determination function

List price
275.00 €

Weighing capacity

200 g

Readability

0.001 g

Repeatability

0.002 g

Linearity

± 0.005 g

Weighing surface (d)

82 mm

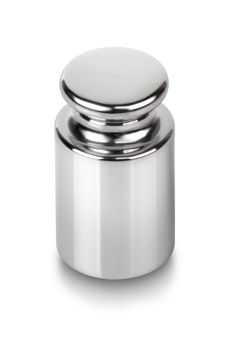

Recommended adjusting weight

200 g (F1)

Standard Option
Description
  • Thanks to the self-explanatory, graphic-assisted control panel, the density of solids and liquids can be determined in seconds, making them ideal for use in schools and universities

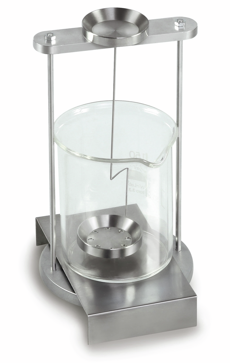

  • Note: Balance and appropriate set for density determination should be ordered at the same time, see accessories
  • Hook for underfloor weighing standard

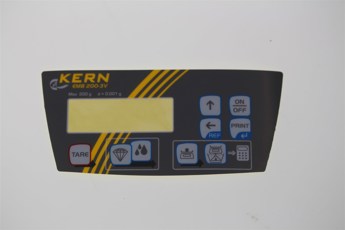

  • Self-explanatory, graphic control panel, the workings steps can be understood immediately, even without operating instructions
    - no learning time = reduces costs
    - ideal for untrained users
    - visualised process avoids operating errors
  • The 4 steps are carried out from left to right:
    Tare the balance by pressing the [TARE] key
    Select density determination mode (solids/liquids)
    Weighing of samples/plummets in air
    Weighing of samples/plummets in liquid. The density will be shown on the display right away
  • Particularly flat design
Specifications

Article codes, product groups & Status information

Model article-code
:
EMB 200-3V
Model-Serie
:
EMB
Assortment
:
KERN
Product Type
:
Laboratory balances
Product group
:
School balances
Product usage type
:
Main article
EAN code (Model)
:
4045761133877
Planned start date
:
2013-1HJ
Customs tariff number
:
90160010
Product status
:
Active
CE Label
:
Yes

Technical data - Environmental conditions

Maximum humidity
:
80 %
Maximum operating temperature
:
35 °C
Minimum ambient temperature
:
5 °C
Minimum humidity
:
5 %

Prices & Discounts

List price
:
275.00 €
Warranty
:
24 mon

Technical data - Primary

Weighing capacity
:
200 g
Readability
:
0.001 g
Repeatability
:
0.002 g
Linearity
:
± 0.005 g
Weighing surface (d)
:
82 mm
Recommended adjusting weight
:
200 g (F1)

Technical data - Power supply

Battery
:
9 V Block
Operating time
:
12 h
Mains adapter/adapter included
:
CH;EURO;UK;US

Technical data - Packing & Shipping

Packaging component - by weight - paper
:
18 g
Packaging component - by weight - cardboard
:
890 g
Packaging component - by weight - plastics
:
6 g
Packaging component - by weight - styrofoam
:
111 g
Packaging component - by weight - wood
:
202 g
Delivery time
:
1 d
Dimensions packaging (W×D×H)
:
220×290×150 mm
Gross weight
:
1.6 kg
Net weight
:
0.85 kg
Shipping method
:
Parcel service

Technical data - Construction

Dimension housing (W×D×H)
:
175×250×55 mm
Material weighing plate
:
Plastic
Casing material
:
Plastic
Weighing surface (d)
:
82 mm

Technical data - Display

Display height
:
15 mm
Backlight
:
Yes

Technical data - Measuring system

Carat - max capacity
:
1000 ct
Carat - readout
:
0.005 ct
Calibration method
:
Adjusting with external weight
Linearity
:
± 0.005 g
Readability
:
0.001 g
Recommended adjusting weight
:
200 g (F1)
Repeatability
:
0.002 g
Stabilisation time under laboratory conditions
:
2.5 s
Warm up time
:
120 min
Weighing system
:
Strain gauge
Weighing units
:
Ct;g

Responsible Persons

Product manager
:
Timo Günther

Optional Services

DAkkS Calibration
:
963-127
Your KERN product specialist will be happy to help
