Needle printer KERN YKT-01
Available from stock

High-quality printer with large LCD display and numerous functions

List price
580.00 €
Standard
Description
  • GLP-compliant printout thanks to durable paper and dot matrix printing process
  • Printout of date and time to document the weighings with a time stamp
  • Specification of name, batch number and ID for printing user-defined information
  • Display and printout of tare, gross and net weights for easy calculation and documentation
  • Multiple weighing for storing and processing multiple consecutive weighings
  • Recipe function for weighing and documenting various components
  • Totalizing function for calculating the total of multiple weighings
  • Statistical function for calculating and printing statistical values such as average value or standard deviation
  • Printing process: 8 print magnets with dot matrix
  • Speed: 1,7 line/s
  • Character size (ASCII characters): W×H 1.7×2.6 mm
  • Service life: 1 million lines

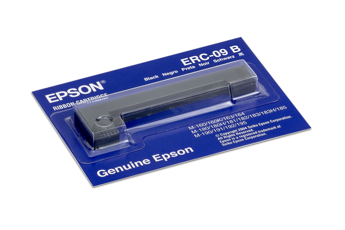

  • Ribbon cartridge: EPSON ERC-22 or ERC-09B
  • Operation via mains adapter 230 V/50 Hz (standard EU), as standard
Specifications

Article codes, product groups & Status information

Model article-code
:
YKT-01
Model-Serie
:
YKT
Assortment
:
KERN
Product Type
:
General weighing accessories
Product group
:
Accessories (printer, etc.)
Product usage type
:
Main item;Accessories/Services
EAN code (Model)
:
4045761484849
Predecessor Model
:
911-013; YKN-01; YKS-01; YKT-01-2023a
Planned start date
:
2025-2HJ
Customs tariff number
:
84239010
Product status
:
Active
CE Label
:
Yes

Technical data - Construction

Overall dimensions mounted (W×D×H)
:
114.6×188.2×86.6 mm

Technical data - Environmental conditions

Maximum humidity
:
80 %
Maximum operating temperature
:
45 °C
Minimum ambient temperature
:
5 °C
Minimum humidity
:
10 %

Responsible Persons

Product manager
:
Timo Günther

Prices & Discounts

List price
:
580.00 €
Warranty
:
36 mon

Technical data - Power supply

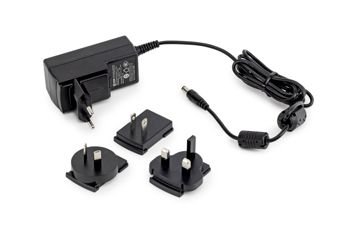

Mains adapter/adapter included
:
AUS;CH;EURO;UK;US
Input Voltage
:
100 V - 240 V AC, 50 / 60 Hz
Mains adapter
:
Power supply unit
Interfaces
:
RS-232 standard

Technical data - Packing & Shipping

Packaging component - by weight - cardboard
:
521.5 g
Packaging component - by weight - plastics
:
521.5 g
Delivery time
:
1 d
Dimensions packaging (W×D×H)
:
265×200×180 mm
Gross weight
:
1.8 kg
Net weight
:
0.65 kg
Shipping method
:
Parcel service
Spare Parts
No records found
Software
No records found
Your KERN product specialist will be happy to help
