Parcel Scale KERN EOB 60K20L
Available from stock

Allround parcel scale with robust stainless steel weighing plate

List price
350.00 €

Weighing capacity

60 kg

Readability

0.02 kg

Net weight

12.22 kg

Platform size

550×550 mm

Indicator cable length

2.7 m

Dimension weighing platform (W×D×H)

550×550×58 mm

Standard Option
Description
  • Weighing plate stainless steel, painted steel base
  • Simple and convenient 4-key operation
  • Wall mount for display device, standard
  • Hold function: When the weighing conditions are unstable, a stable weight is calculated determining an average value
  • Protective working cover included with delivery
  • Universal external mains adapter included with delivery
Specifications

Article codes, product groups & Status information

Model article-code
:
EOB 60K20L
Model-Serie
:
EOB
Assortment
:
KERN
Product Type
:
Industrial scales
Product group
:
Platform scales
Product usage type
:
Main article
EAN code (Model)
:
4045761192133
Predecessor Model
:
EOB 60K20L-2018a
Planned start date
:
2017-1HJ
Customs tariff number
:
84238220
Product status
:
Active
CE Label
:
Yes

Technical data - Display

Display height
:
25 mm
Backlight
:
Yes

Technical data - Measuring system

Calibration method
:
Adjusting with external weight
Linearity
:
± 0.04 kg
Readability
:
0.02 kg
Recommended adjusting weight
:
40 kg (M2)
Repeatability
:
0.02 kg
Resolution
:
3.000
Stabilisation time under laboratory conditions
:
3 s
Tare range
:
60 kg
Warm up time
:
10 min
Weighing system
:
Strain gauge
Weighing units
:
Kg;lb;PCS

Technical data - Primary

Weighing capacity
:
60 kg
Readability
:
0.02 kg
Net weight
:
12.22 kg
Platform size
:
550×550 mm
Indicator cable length
:
2.7 m
Dimension weighing platform (W×D×H)
:
550×550×58 mm

Technical data - Power supply

Battery
:
4×1.5 V AA
Operating time
:
60 h
Mains adapter/adapter included
:
AUS;CH;EURO;UK;US
Input Voltage
:
100 V - 240 V, 50 / 60 Hz

Technical data - Environmental conditions

Maximum humidity
:
80 %
Maximum operating temperature
:
35 °C
Minimum ambient temperature
:
5 °C

Responsible Persons

Product manager
:
Steffen Hofmann

Prices & Discounts

List price
:
350.00 €
Warranty
:
24 mon

Optional Services

DAkkS Calibration
:
963-129

Technical data - Construction

IP protection indicator
:
No IP protection
IP protection platform
:
No IP protection
IP protection load cell
:
No IP protection
Dimensions display casing (W×D×H)
:
235×114×51 mm
Material weighing plate
:
Stainless steel

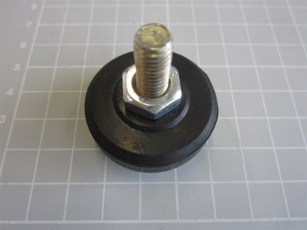

Revolving screw feet
:
Yes
Weighing surface (d)
:
550×550 mm
Dimensions of weighing plate (W×D)
:
550×550 mm
Indicator cable length
:
2.7 m
Wall mount
:
Yes

Technical data - Packing & Shipping

Packaging component - by weight - cardboard
:
735 g
Packaging component - by weight - plastics
:
12 g
Delivery time
:
1 d
Dimensions packaging (W×D×H)
:
670×600×85 mm
Gross weight
:
16 kg
Net weight
:
13 kg
Shipping method
:
Parcel service
Software
No records found
Your KERN product specialist will be happy to help
