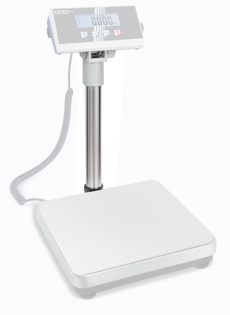

Parcel Scale KERN EOB 150K50
Available from stock

Allround parcel scale with robust stainless steel weighing plate

List price
173,00 €

Weighing capacity

150 kg

Readability

0,05 kg

Net weight

3,69 kg

Platform size

315×305 mm

Indicator cable length

1,8 m

Dimension weighing platform (W×D×H)

315×305×57 mm

Standard
Option
Description
  • Weighing plate stainless steel, painted steel base
  • Simple and convenient 4-key operation
  • Wall mount for display device, standard
  • Hold function: When the weighing conditions are unstable, a stable weight is calculated determining an average value
  • Protective working cover included with delivery
  • Universal external mains adapter included with delivery
Specifications

Article codes, product groups & Status information

Model article-code
:
EOB 150K50
Model-Serie
:
EOB
Assortment
:
KERN
Product Type
:
Industrial scales
Product group
:
Platform scales
Product usage type
:
Main article
EAN code (Model)
:
4045761192065
Predecessor Model
:
EOB 150K50-2.018a
Planned start date
:
2017-1HJ
Customs tariff number
:
84238220
Model Status
:
Active
CE Label
:
Yes
Country of Origin
:
CN

Technical data - Environmental conditions

Maximum humidity
:
80 %
Maximum operating temperature
:
35 °C
Minimum ambient temperature
:
5 °C

Prices & Discounts

List price
:
173,00 €
Warranty
:
24 mon

Technical data - Primary

Weighing capacity
:
150 kg
Readability
:
0,05 kg
Net weight
:
3,69 kg
Platform size
:
315×305 mm
Indicator cable length
:
1,8 m
Dimension weighing platform (W×D×H)
:
315×305×57 mm

Technical data - Display

Display height
:
25 mm
Backlight
:
Yes

Technical data - Power supply

Battery
:
4×15 V AA
Operating time
:
60 h
Mains adapter/adapter included
:
AUS;CH;EURO;UK;US
Input Voltage
:
100 V - 240 V, 50 / 60 Hz

Technical data - Packing & Shipping

Packaging component - by weight - paper
:
40 g
Packaging component - by weight - cardboard
:
360 g
Packaging component - by weight - plastics
:
27,8 g
Delivery time
:
1 d
Dimensions packaging (W×D×H)
:
365×370×145 mm
Gross weight
:
5,0 kg
Net weight
:
3,8 kg
Shipping method
:
Parcel service

Technical data - Construction

IP protection indicator
:
No IP protection
IP protection platform
:
No IP protection
IP protection load cell
:
No IP protection
Dimensions display casing (W×D×H)
:
235×114×51 mm
Material weighing plate
:
Stainless steel
Weighing surface (d)
:
315×305 mm
Dimensions of weighing plate (W×D)
:
315×305 mm
Indicator cable length
:
1,8 m

Technical data - Measuring system

Calibration method
:
Adjusting with external weight
Linearity
:
± 0,1 kg
Readability
:
0,05 kg
Recommended adjusting weight
:
100 kg (M2)
Repeatability
:
0,05 kg
Resolution
:
3.000
Stabilisation time under laboratory conditions
:
3 s
Tare range
:
150 kg
Warm up time
:
10 min
Weighing system
:
Strain gauge
Weighing units
:
Kg;lb;PCS

Responsible Persons

Product manager
:
Steffen Hofmann

Optional Services

DAkkS Calibration
:
963-129
