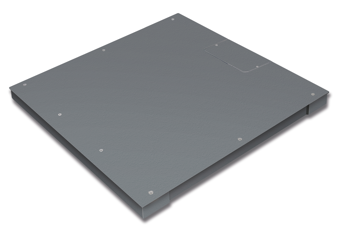

Floor Scale KERN BFB 600K-1NM
Available from stock

Weighing bridge with screwed-on weighing plate (IP67) and XXL display device, verification optional

List price
1910.00 €

Weighing capacity

600 kg

Readability

0.2 kg

Minimum load (Min)

4 kg

Net weight

140 kg

Platform size

1500×1250 mm

Standard Option Factory
Description
  • Weighing plate : smooth surface, screwed on from the top, so it easy to remove, hygienic and easy to clean
  • 4 silicone-coated steel load cells, IP67 dust and spray protection
  • Display device: for details see KERN KFB-TM
  • Benchtop stand incl. wall mount for display device as standard
  • Totalising of weights and piece counts
  • Protective working cover included with delivery
Specifications

Article codes, product groups & Status information

Model article-code
:
BFB 600K-1NM
Model-Serie
:
BFB
Assortment
:
KERN
Product Type
:
Industrial scales
Product group
:
Floor scales
Product usage type
:
Main article
EAN code (Model)
:
4045761194281
Predecessor Model
:
BFB 600K-1NM-2018a
Successor Model
:
BFC 600K-1M
Planned start date
:
2017-2HJ
Customs tariff number
:
84238220
Product status
:
Discontinued

Technical data - Display

Display height
:
52 mm
Backlight
:
Yes

Technical data - Measuring system

Calibration method
:
Adjusting with external weight
Linearity
:
± 0.4 kg
Readability
:
0.2 kg
Recommended adjusting weight
:
600 kg (M2)
Repeatability
:
0.2 kg
Resolution
:
3.000
Stabilisation time under laboratory conditions
:
2 s
Tare range
:
-600 kg
Warm up time
:
10 min
Weighing system
:
Strain gauge
Weighing units
:
Kg
load cell connection
:
4-guide

Technical data - Verification

Verification value (e)
:
0.2 kg
Minimum Load Min
:
4 kg
Verification by KERN possible
:
Yes
Verification class
:
III

Technical data - Primary

Weighing capacity
:
600 kg
Readability
:
0.2 kg
Minimum load (Min)
:
4 kg
Net weight
:
140 kg
Platform size
:
1500×1250 mm

Technical data - Power supply

Battery
:
No battery
Mains adapter/adapter included
:
CH;EURO;UK;US
Charging time
:
10 h
Input Voltage
:
100 V - 240 V, 50 / 60 Hz
Operating time (Backlight off)
:
35 h
Rechargeable battery
:
Rchrg. battery optional (factory)

Technical data - Environmental conditions

Maximum humidity
:
80 %
Maximum operating temperature
:
40 °C
Minimum ambient temperature
:
-10 °C

Responsible Persons

Product manager
:
Thomas Buchholz

Prices & Discounts

List price
:
1910.00 €
Warranty
:
36 mon

Optional Services

DAkkS Calibration
:
963-130
Verification
:
965-230

Technical data - Construction

IP protection indicator
:
No IP protection
IP protection load cell
:
IP67
Dimensions display casing (W×D×H)
:
250×160×58 mm
Material weighing plate
:
Steel, lacquered
Bubble Level
:
Yes
Revolving screw feet
:
Yes
Weighing surface (d)
:
1500×1250 mm
Dimensions of weighing plate (W×D)
:
1500×1250 mm
Indicator cable length
:
5 m
Wall mount
:
Yes
Dimension weighing platform (W×D×H)
:
1500×1250×85 mm

Technical data - Packing & Shipping

Packaging component - by weight - paper
:
100 g
Packaging component - by weight - cardboard
:
1.2 kg
Packaging component - by weight - styrofoam
:
0 g
Packaging component - by weight - glass
:
0 g
Packaging component - by weight - wood
:
58.8 kg
Packaging component - by weight - foam
:
0 g
Packaging component - by weight - metal
:
0 g
Delivery time
:
2 d
Dimensions packaging (W×D×H)
:
1610×1320×330 mm
Gross weight
:
195 kg
Net weight
:
140 kg
Shipping method
:
Freight
Accessories

BFS-A07

170.00 €

Stand to elevate display device

KFB-A01

40.00 €

Rechargeable battery pack internal

KFB-A02

33.00 €

Protective working cover

911-013

480.00 €

Matrix needle printer

PFB-A03

43.00 €

Power supply KERN PFB-A03 (UK)

PFB-A02

38.00 €

Power adapter (EURO, CH)

PFB-A04

43.00 €

Power adapter (US)

CFS-A03

310.00 €

Signal lamp for visual support of weighing with tolerance range

CFS-A04

38.00 €

Y-cable for parallel connection of two terminal devices to the RS-232 interface on the scale, e.g. signal lamp and printer

YKI-01

380.00 €

RS-232 / Ethernet adapter KERN YKI-01

YKN-01

310.00 €

Matrix needle printer

BFB-A03

195.00 €

Cable with special length 15 m

YKI-02

380.00 €

RS-232 / Bluetooth adapter

YKA-11

55.00 €

Mains adapter 100 - 240 V~ 50/60 Hz 190 mA, Standard EURO/US/AUS/UK/CH

BFS-A02N

480.00 €

Ascending ramp, not included, W×D×H 1250x870x85 mm, for models with weighing plate size 1500×1250 mm

BFS-A04N

450.00 €

Stable pit frame for weighing bridge installation, allowing for easy access, W×D×H 1335x1585x80 mm, for models with weighing plate size B 1500×1250×80 mm, must be ordered at purchase

BFS-A06N

80.00 €

Pair of base plates to fix the weighing bridge to the floor

KFB-A02S05

52.00 €

Protective working cover over the display device

YKP-02

220.00 €

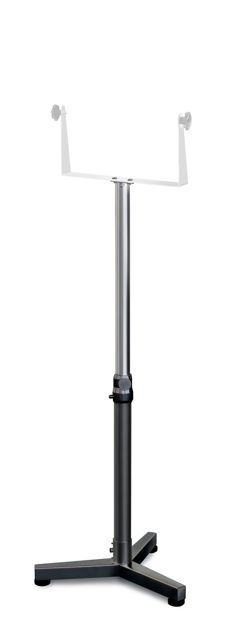

Height of stand 750-1000 mm, Stainless steel

KFB-A04

170.00 €

Analogue module 0–10 V, must be ordered at purchase, not in combination with signal lamp or rechargeable battery pack

KFB-A03

160.00 €

Bluetooth kit (not compatible with iOS), must be ordered at purchase

KFB-A05

170.00 €

Analogue module 4–20 mA, must be ordered at purchase, not in combination with signal lamp or rechargeable battery pack

YKD-A02

310.00 €

Large display

AFH 13

105.00 €

RS-232 to USB converter

CFS-A01

50.00 €

Interface cable RS-232 cable length 1,5 m

YKC-01

310.00 €

Reliable thermal printer for standard applications
