Display Devices KERN KFB-TM
Available from stock

Display device with large, easy to read digits and optional analogue output for controlling systems (PLC) etc.

List price
260,00 €

Net weight

1,1 kg

Standard Option Factory
Description
  • Adjusting program CAL for quick setting
  • Totalising
  • Piece counting with reference: Possible reference counts: 10, 20, 50, 100, 200
  • Hold function: When the weighing conditions are unstable, a stable weight is calculated determining an average value
  • Integrated KERN Communication Protocol (KCP), ideal for connecting an Merchandise Management or ERP system
  • EC type approval: yes

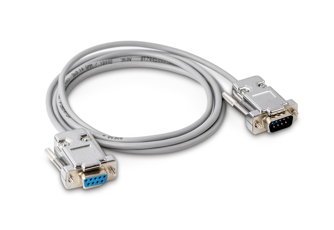

  • Data interface RS-232 as standard
  • Benchtop stand for display device incl.
  • Wall mount for display device, standard
Specifications

Article codes, product groups & Status information

Model article-code
:
KFB-TM
Model-Serie
:
KFB
Assortment
:
KERN
Product Type
:
Industrial scales
Product group
:
Display devices
Product usage type
:
Main article
EAN code (Model)
:
4045761194403
Predecessor Model
:
KFB-TM-2.017a
Successor Model
:
KFC-TM
Planned start date
:
2017-2HJ
Customs tariff number
:
84239010
Model Status
:
Discontinued
CE Label
:
Yes

Technical data - Verification

Verification by KERN possible
:
Yes
Verification class
:
III

Technical data - Primary

Net weight
:
1,1 kg

Technical data - Display

Display height
:
52 mm
Backlight
:
Yes

Technical data - Power supply

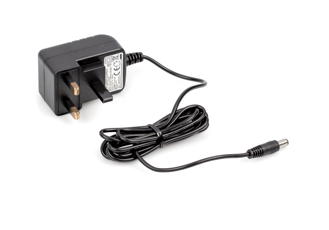

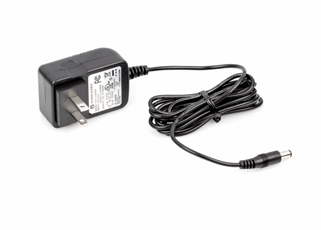

Mains adapter/adapter included
:
EURO;UK;US
Charging time
:
12 h
Input Voltage
:
110 V - 230 V AC
Operating time (Backlight off)
:
35 h

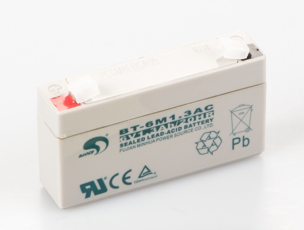

Rechargeable battery
:
Rchrg. battery optional
Interfaces
:

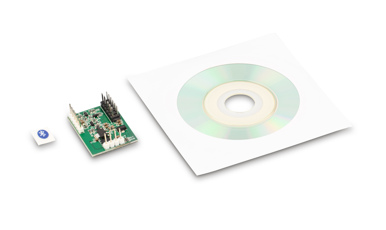

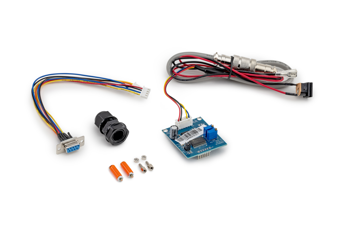

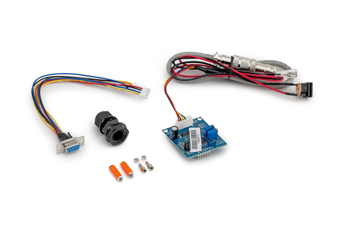

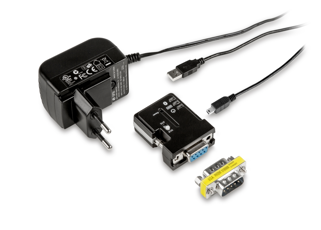

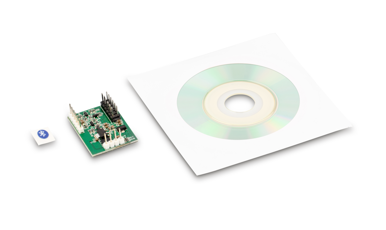

Analog (0 - 10 V) (optional, factory);Analog (4 - 20 mA) (optional, factory);Bluetooth BTC (v2.0) (optional, factory);RS-232 serienmäßig

Responsible Persons

Product manager
:
Thomas Buchholz

Prices & Discounts

List price
:
260,00 €
List price, next year
:
260,00 €
Warranty
:
24 mon

Technical data - Construction

IP protection indicator
:
No IP protection
Dimensions display casing (W×D×H)
:
250×160×65 mm
Wall mount
:
Yes
Material casing
:
Plastic

Technical data - Measuring system

Calibration method
:
Adjusting with external weight
Resolution (non verified)
:
30.000
Resolution (verified)
:
6.000
Weighing units
:
G;kg;lb
Linearity (in dots)
:
3
Number of weighing ranges
:
2

Technical data - Environmental conditions

Maximum operating temperature
:
40 °C
Minimum ambient temperature
:
-10 °C

Technical data - Packing & Shipping

Packaging component - by weight - cardboard
:
315 g
Packaging component - by weight - styrofoam
:
315 g
Delivery time
:
1 d
Dimensions packaging (W×D×H)
:
330×200×220 mm
Gross weight
:
1,8 kg
Net weight
:
1,2 kg
Shipping method
:
Parcel service
