Counting System KERN CCA 6K-4M
Available from stock
High-resolution counting system to count the smallest parts in large quantities, maximum number of parts which can be displayed is 999,999, verification optional
List price
1,000.00 €
Technical Datasheet
Counting resolution
60000
Minimum piece weight
1 g
Net weight
8.624 kg
Platform size
300×240 mm
Readout weight reference scale
100 mg
Readout weight quantity scale
0.001 kg; 0.002 kg
Max weight reference scale
6 kg
Max weight quantity scale
3 kg; 6 kg
| Standard | Option | Factory | ||
|---|---|---|---|---|
              |
  |
 |
Description
- The highly accurate KERN CCA counting system can replace a whole range of individual balances, efficiently and at a reasonable price
- Thanks to optional verification, it is also suitable for use in verified applications

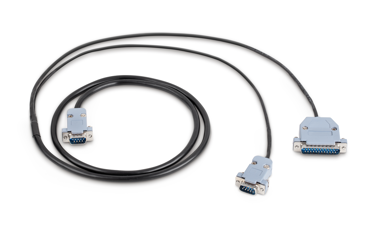

- The balances are connected to one another with an RS-232 Y-cable, which also allows you to connect a printer
Reference scale KERN EWJ
- This precision balance, which can be used as an individual balance, also fulfils the highest demands through connection with a high-capacity platform
- Automatic internal adjustment, time-controlled every 2 h, guarantees high degree of accuracy and makes the balance independent of its location
- Draught shield standard for models with [Max] = 600 g, weighing space W×D×H 134×128×80 mm
- Protective working cover included with delivery
Quantity scale KERN IFS
- The high-accuracy quantity counting takes place on the weighing platform IFS. In this way even the smallest of parts can be counted in large volumes
- Tough industry standard suitable for use in harsh industrial applications
- Ergonomic display device with large keypad and high-contrast LCD display for easy entry and reading of, e.g., tare weights, reference weights, limit values etc.
- Three displays for weight display, reference weight, total pieces
- 100 item memories for master data such as reference weight, reference quantity, container weight (PRE-TARE) etc.
- Precise counting: The manual reference weight optimisation gradually improves the average value of the piece weight
- Totalising of pieces when counting
- Printout with date and time

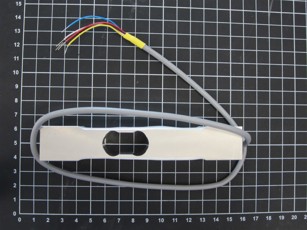

- Aluminium singlepoint load cell (1×3000 e), protection against dust and water splashes IP65
- Protective working cover over the display device included with the delivery
Specifications
Article codes, product groups & Status information
Model article-code
:
CCA 6K-4M
Model-Serie
:
CCA
Assortment
:
KERN
Product Type
:
Industrial balance
Product group
:
Counting systems
Product usage type
:
Main article
EAN code (Model)
:
4045761276437
Planned start date
:
2022-1HJ
Customs tariff number
:
84238129
Product status
:
Active
CE Label
:
Yes
Technical data - Measuring system
Calibration method
:
Adjusting with external weight
Recommended adjusting weight
:
6 kg (M1)
Stabilisation time under laboratory conditions
:
2 s
Weighing system
:
Strain gauge
Weighing units
:
Kg
Reference scale - Linearity
:
300 mg
Quantity scale - Linearity
:
0.001 kg; 0.002 kg
Repeatability reference scale
:
100 mg
Repeatability quantity scale
:
0,001 kg; 0,002 kg
Technical data - Primary
Counting resolution
:
60000
Minimum piece weight
:
1 g
Net weight
:
8.624 kg
Platform size
:
300×240 mm
Readout weight reference scale
:
100 mg
Readout weight quantity scale
:
0.001 kg; 0.002 kg
Max weight reference scale
:
6 kg
Max weight quantity scale
:
3 kg; 6 kg
Technical data - Display
Display height
:
20 mm
Backlight
:
Yes
Technical data - Environmental conditions
Maximum humidity
:
80 %
Maximum operating temperature
:
40 °C
Minimum ambient temperature
:
0 °C
Minimum humidity
:
0 %
Technical data - Packing & Shipping
Packaging component - by weight - cardboard
:
1258 g
Packaging component - by weight - plastics
:
1258 g
Delivery time
:
4 d
Dimensions packaging (W×D×H)
:
695×405×490 mm
Gross weight
:
12 kg
Net weight
:
9 kg
Shipping method
:
Parcel service
Technical data - Construction
IP protection indicator
:
No IP-protection
IP protection platform
:
IP65
IP protection load cell
:
IP65
Casing material
:
Plastic
Material weighing plate
:
Metal, lacquered

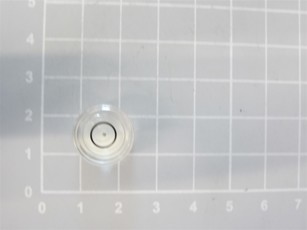

Bubble Level
:
Yes

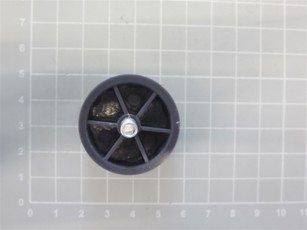

Revolving screw feet
:
Yes
Dimensions of weighing plate (W×D)
:
300×240 mm
Technical data - Power supply
Battery
:
No battery

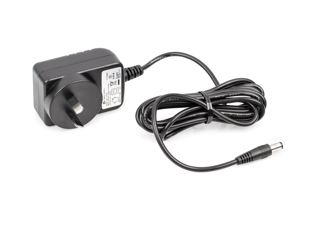

Mains adapter/adapter included
:
CH;EURO;UK
Charging time
:
12 h
Input Voltage
:
100-240V
Operating time (Backlight off)
:
18 h

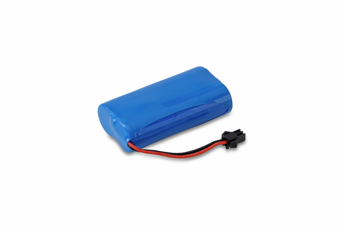

Rechargeable battery
:
Rchrg. battery optional
Technical data - Counting data
Mininum piece weight at piece counting (Laboratory)
:
100 mg
Technical data - Verification
Verification by KERN possible
:
Yes
Responsible Persons
Product manager
:
Steffen Hofmann
Prices & Discounts
List price
:
1,000.00 €
Warranty
:
36 mon
