Ultrasonic Thickness Gauge SAUTER TN 60-0.01EE
Available from stock

Hand-held measuring device for ultrasonic material thickness testing in Echo-Echo principle

List price
1340.00 €

Max. Pulse-Echo

600 mm

Min. Pulse-Echo

0.7 mm

Max. Echo-Echo

60 mm

Min. Echo-Echo

3 mm

Standard Option
Description
  • External measuring head

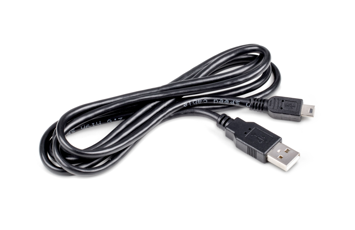

  • USB data interface, as standard
  • Scan mode (10 measurements per sec.) or single point measuring mode possible
  • Internal memory for up to 20 files (with up to 100} values per file)
  • Selectable measuring units: mm inch
  • Two measuring modes to determine material thickness:
    - Pulse-Echo mode
    - Echo-Echo mode
  • Echo-Echo measuring: Determining the actual thickness of materials irrespective of any coating which might be present. In this way, the wall thickness of pipes, for example, can be determined in a non-destructive manner, without having to remove the coating and the measurement can be shown on the display, with the adjustment for the coating thickness already taken into account
  • Echo-Echo measurements are only possible with the measuring head included as part of the delivery (SAUTER ATU-US12, see accessories)
  • Scope of delivery: Operating instructions, batteries, external measuring head (Ø 10 mm) and ultrasound contact gel
  • Delivered in a robust carrying case
Specifications

Article codes, product groups & Status information

Model article-code
:
TN 60-0.01EE
Model-Serie
:
TN
Assortment
:
Sauter
Product Type
:
Thickness measurement
Product group
:
Material thickness gauges
Product usage type
:
Main article
EAN code (Model)
:
4045761158627
Planned start date
:
2012-1HJ
Customs tariff number
:
90318080
Product status
:
Active
CE Label
:
Yes

Technical data - Packing & Shipping

Packaging component - by weight - cardboard
:
262 g
Delivery time
:
1 d
Dimensions packaging (W×D×H)
:
320×250×85 mm
Gross weight
:
1.6 kg
Net weight
:
0.30 kg
Shipping method
:
Parcel service
UN number
:
Drycell (UN number Alkaline: none, NiMH: 3496 - Packing instruction #1)

Technical data - Primary

Max. Pulse-Echo
:
600 mm
Min. Pulse-Echo
:
0.7 mm
Max. Echo-Echo
:
60 mm
Min. Echo-Echo
:
3 mm

Technical data - Power supply

Power supply
:
Battery
Battery type
:
Alkali(-Manganese)
Quantity Batteries
:
2×1.5 V AA

Technical data - Functions

Optical ready signal
:
Yes
Interfaces
:
USB-Device

Technical data - Counting data

Memory
:
Yes
Value memory - number of groups
:
20
Value memory - number of cells (per group)
:
100

Responsible Persons

Product manager
:
Dietmar Paul

Prices & Discounts

List price
:
1340.00 €
Warranty
:
36 mon

Optional Services

Factory calibration
:
961-113

Technical data - Construction

Dimension housing (W×D×H)
:
150×74×32 mm
Material housing
:
Plastic
cable length
:
0.9 m

Technical data - Display

Display type
:
LCD

Technical data - Measuring system

Readability
:
0.01 mm
Tolerance (% from Max.)
:
0.5%
Units
:
Inch;mm
Material Speed of sound - min.
:
1000 m/s
Material Speed of sound - max.
:
9999 m/s
Material Speed of sound - max.
:
9999 m/s
Measuring Head diameter
:
10 mm

Technical data - Environmental conditions

Maximum operating temperature
:
40 °C
Minimum operating temperature
:
-10 °C
Maximum storage temperature
:
40 °C
Minimum storage temperature
:
-10 °C
