Weighing Bridge KERN KFP 6000V20M
Expected to be available on 01/27/2026

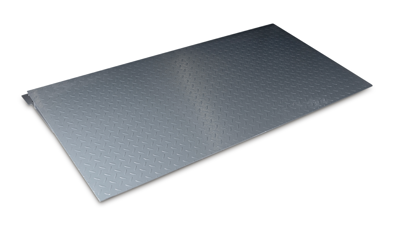

Weighing bridge made of non-slip corrugated steel plate, lacquered

List price
2.430,00 €

Weighing capacity

6.000 kg

Readability

2 kg

Verification value (e)

2 kg

Minimum load (Min)

40 kg

Net weight

208 kg

Dimension weighing platform (W×D×H)

1.500×1.500×123 mm

Standard Factory
Description
  • Lacquered steel weighing bridge, corrugated steel plate. Extremely resistant to bending due to material thickness
  • 4 Load cells, steel, silicone-coated, IP67, OIML R60 approval for verification, Class III, 3000 e
  • Can be built in using pit frames (optional)
  • Level indicator and levelling feet for precise levelling of the scale, fitted as standard
  • Easy access to the junction box from above
  • Comfortable levelling of the weighing bridge from the top
Specifications

Article codes, product groups & Status information

Model article-code
:
KFP 6.000V20M
Model-Serie
:
KFP
Assortment
:
KERN
Product Type
:
Industrial scales
Product group
:
Platforms
Product usage type
:
Spare part;Main article
EAN code (Model)
:
4045761162198
Successor Model
:
KFP 6.000V20M-2.026e
Planned start date
:
2014-1HJ
Customs tariff number
:
90318080
Model Status
:
Active
Country of Origin
:
CN

Technical data - Verification

Verification Value E
:
2 kg
Minimum Load Min
:
40 kg
Verification by KERN possible
:
Yes

Technical data - Primary

Weighing capacity
:
6.000 kg
Readability
:
2 kg
Verification value (e)
:
2 kg
Minimum load (Min)
:
40 kg
Net weight
:
208 kg
Dimension weighing platform (W×D×H)
:
1.500×1.500×123 mm

Technical data - Measuring system

Readability
:
2 kg
load cell connection
:
6-Leiter

Responsible Persons

Product manager
:
Thomas Buchholz

Prices & Discounts

List price
:
2.430,00 €
List price, next year
:
2.430,00 €
Warranty
:
36 mon

Technical data - Construction

IP protection platform
:
IP67 (junction box)
IP protection load cell
:
IP67
Material weighing plate
:
Steel, powder-coated
Revolving screw feet
:
Yes
Weighing surface (d)
:
1.500×1.500 mm
Dimensions of weighing plate (W×D)
:
1.500×1.500 mm
Dimensions weighing platform
:
1.500×1.500×123 mm

Technical data - Packing & Shipping

Packaging component - by weight - cardboard
:
1.320 g
Packaging component - by weight - wood
:
64,68 kg
Delivery time
:
2 d
Dimensions packaging (W×D×H)
:
1.550×1.300×350 mm
Gross weight
:
275 kg
Net weight
:
210 kg
Shipping method
:
Freight
Software
No records found
Your KERN product specialist will be happy to help
