Analogue Shore Hardness Tester SAUTER HBA 100-0
Available from stock
Compact handheld durometer with drag indicator
List price
Hardness scales
Shore A
Standard
Description
- Typical application: measurement of penetration (Shore)
- Particularly recommended for internal comparison measurement. Standard calibrations e.g. to DIN 48-4 are not possible because of very narrow standard tolerances
- Shore A: Rubber, elastomers, neoprene, silicone, vinyl, so plastics, felt, leather and similar material
- Max mode: Records the peak value indication by drag pointer

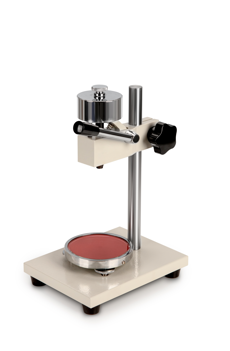

- Can be attached to the test stand SAUTER TI-AC
- Delivery in a plastic box
Specifications
Article codes, product groups & Status information
Model article-code
:
HBA 100-0
Model-Serie
:
HB
Assortment
:
Sauter
Product Type
:
Hardness measurement
Product group
:
Hardness testers (Shore)
Product usage type
:
Main article
EAN code (Model)
:
4045761140172
Predecessor Model
:
HBA 100-0-2.019a
Planned start date
:
2012-1HJ
Customs tariff number
:
90248000
Model Status
:
Active
Country of Origin
:
CN
Responsible Persons
Product manager
:
Dietmar Paul
Technical data - Primary
Hardness scales
:
Shore A
Technical data - Measuring system
Test force Hardness measurement
:
10 N
Readability (Shore)
:
1
Tolerance (% from Max.)
:
3%
Unit
:
HA
Prices & Discounts
List price
:
125,00 €
Warranty
:
24 mon
Technical data - Construction
Dimension housing (W×D×H)
:
115×60×25 mm
Material housing
:
Metal
Technical data - Environmental conditions
Maximum operating temperature
:
40 °C
Minimum operating temperature
:
0 °C
Maximum storage temperature
:
40 °C
Minimum storage temperature
:
-10 °C
Technical data - Packing & Shipping
Delivery time
:
1 d
Dimensions packaging (W×D×H)
:
147×98×54 mm
Gross weight
:
0,50 kg
Net weight
:
0,15 kg
Shipping method
:
Parcel service
UN number
:
No dangerous goods
Accessories
Spare Parts
No records found
Services
No records found
Software
No records found
