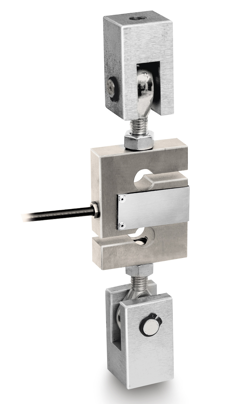

Measuring Cell SAUTER CS 6000-3Q1
Available from stock

6-wire "S" measuring cell made of nickel-plated steel for force and mass measurement

List price
370.00 €

Force directions

Compression;tension

OIML class

C3

Weighing capacity

6000 kg

Max (N)

60 kN

Standard Option
Description
  • RoHS compliant
  • Area of application: for tensile and compressive force measurement
  • Suitable for handing scales, weigh hoppers and other weighing devices as well as force measurement devices and test stands
Specifications

Article codes, product groups & Status information

Model article-code
:
CS 6000-3Q1
Model-Serie
:
CS Q1
Assortment
:
Sauter
Product Type
:
Measuring cells
Product group
:
S-shape load cells
Product usage type
:
Main item;Accessories/Services
EAN code (Model)
:
4045761222083
Planned start date
:
2019-1HJ
Customs tariff number
:
90249000
Product status
:
Active
CE Label
:
Yes

Technical data - Verification

Resolution loadcell (e)
:
3000 e

Prices & Discounts

List price
:
370.00 €
Warranty
:
24 mon

Technical data - Primary

Force directions
:
Compression;tension
OIML class
:
C3
Weighing capacity
:
6000 kg
Max (N)
:
60 kN

Technical data - Power supply

Excitation Voltage min.
:
10 V
Excitation Voltage max.
:
15 V

Technical data - Measuring system

Full scale output
:
2 mV/V
combined error
:
0,017%
load cell connection
:
6-Leiter
measuring applications
:
Force;mass

Responsible Persons

Product manager
:
Stefan Herrmann

Technical data - Construction

IP Protection
:
IP67
Material
:
Steel, nickel-plated
Dimensions (W×D×H)
:
120×100×45 mm
cable length
:
5 m
Mounting force in
:
Threaded hole M24 × 2
Mounting force out
:
Threaded hole M24 × 2

Technical data - Packing & Shipping

Packaging component - by weight - cardboard
:
265 g
Packaging component - by weight - foam
:
42 g
Delivery time
:
1 d
Dimensions packaging (W×D×H)
:
220×135×100 mm
Gross weight
:
3.6 kg
Net weight
:
3.4 kg
Shipping method
:
Parcel service
Spare Parts
No records found
Software
No records found
