Measuring Cell SAUTER CR 10000-1Y1
Available from stock

Loadcell made of steel alloy

List price
430.00 €

Force directions

Compression;tension

OIML class

C1

Weighing capacity

10000 kg

Max (N)

100 kN

Standard Option
Description
  • High precision (comprehensive error 0,05% F.S.)
  • RoHS compliant
  • Area of application: for weight, tensile and compressive force measurement
  • Suitable for weight measurement as well as force and force test stands
  • Force transmission via pressure piece or threaded hole

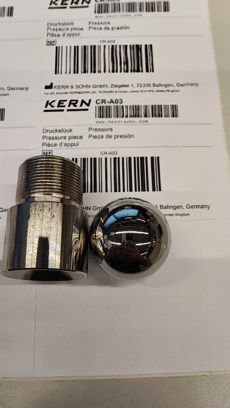

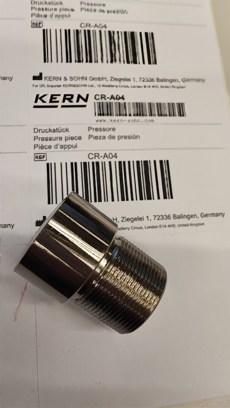

  • Pressure piece included with delivery
Specifications

Article codes, product groups & Status information

Model article-code
:
CR 10000-1Y1
Model-Serie
:
CR Y1
Assortment
:
Sauter
Product Type
:
Measuring cells
Product group
:
Load cells
Product usage type
:
Main item;Accessories/Services
EAN code (Model)
:
4045761246195
Planned start date
:
2021-1HJ
Customs tariff number
:
90249000
Product status
:
Active
CE Label
:
Yes

Prices & Discounts

List price
:
430.00 €
Warranty
:
24 mon

Technical data - Primary

Force directions
:
Compression;tension
OIML class
:
C1
Weighing capacity
:
10000 kg
Max (N)
:
100 kN

Technical data - Power supply

Excitation Voltage min.
:
5 V
Excitation Voltage max.
:
10 V

Technical data - Packing & Shipping

Packaging component - by weight - cardboard
:
91 g
Packaging component - by weight - styrofoam
:
44 g
Delivery time
:
1 d
Dimensions packaging (W×D×H)
:
200×165×135 mm
Gross weight
:
4.2 kg
Net weight
:
4 kg
Shipping method
:
Parcel service

Technical data - Construction

IP Protection
:
IP68
Material
:
Steel
cable length
:
3 m
Mounting force in
:
Pressure piece;Threaded hole M32 × 1,5
Mounting force out
:
8x Durchgangsbohrung Ø8,5mm

Technical data - Measuring system

Full scale output
:
2 mV/V
combined error
:
0,05%
load cell connection
:
4-guide
measuring applications
:
Force;mass

Technical data - Environmental conditions

Usage Temperature (min)
:
-20 °C
Usage temperature (max)
:
65 °C

Responsible Persons

Product manager
:
Stefan Herrmann
Accessories
No records found
Spare Parts
No records found
Software
No records found
