Display device KERN KIB-TM
Available from stock

Practical Flip/Flop display device for greatest ease of use

List price
220.00 €

Net weight

0.8 kg

Standard Option Factory
Description

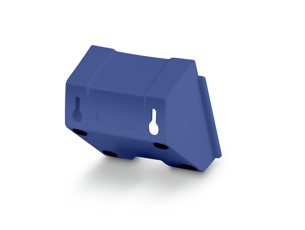

  • Practical Flip/Flop display device: flexible positioning e.g. free-standing or screwed to the wall (optional). By rotating the upper housing shell you can determine the angle of the display as well as the cable outlet. Factory Option ex works for an additional cost, delivery time + 2 working days, at an additional price

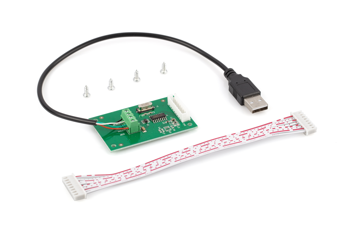

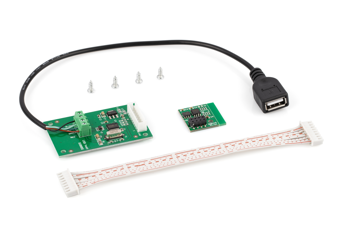

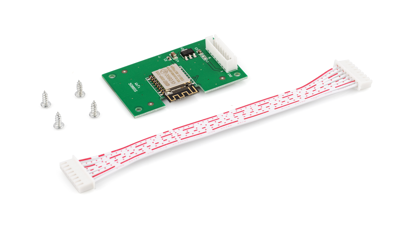

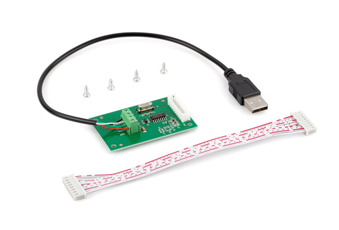

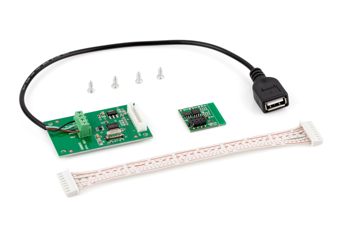

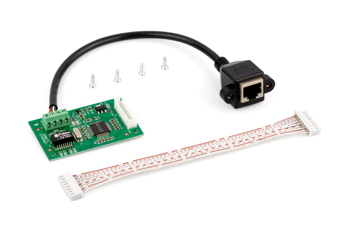

  • Industry 4.0: A wide range of (optional) data interfaces allows easy transfer of weighing data to tablets, laptops, PCs, networks, smartphones, printers, etc.

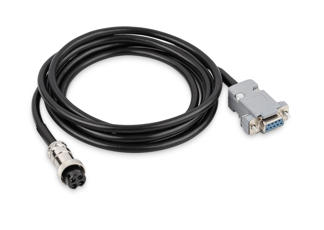

  • Searching and remote control of the balance using external control devices or computers with the KERN Communication Protocol (KCP). KCP is a standardised interface command structure for KERN balances and other instruments which allows you to recall and manage all relevant parameters and device functions. You can therefore simply connect KERN devices with KCP to computers, industrial control systems and other digital systems. In a large number of cases the KCP is compatible with the MT-SICS protocol. Only possible through data interface RS-232, other interfaces on request.
  • Totalising
  • Hold function: When the weighing conditions are unstable, a stable weight is calculated determining an average value
  • Printout with time
Specifications

Article codes, product groups & Status information

Model article-code
:
KIB-TM
Model-Serie
:
KIB
Assortment
:
KERN
Product Type
:
Industrial scales
Product group
:
Display devices
Product usage type
:
Main article
EAN code (Model)
:
4045761193307
Planned start date
:
2017-2HJ
Customs tariff number
:
84239010
Product status
:
Discontinued
CE Label
:
Yes

Technical data - Packing & Shipping

Packaging component - by weight - cardboard
:
200 g
Packaging component - by weight - plastics
:
200 g
Delivery time
:
1 d
Dimensions packaging (W×D×H)
:
225×370×140 mm
Gross weight
:
1.2 kg
Net weight
:
0.80 kg
Shipping method
:
Parcel service

Technical data - Primary

Net weight
:
0.8 kg

Technical data - Display

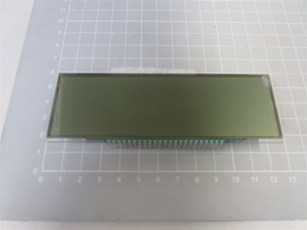

Display height
:
25 mm
Backlight
:
Yes

Technical data - Power supply

Operating time
:
100 h

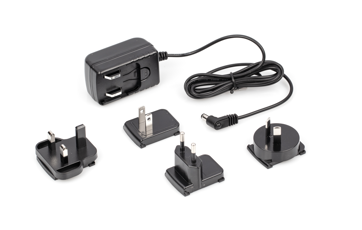

Mains adapter/adapter included
:
EURO;UK;US
Charging time
:
3 h
Input Voltage
:
100V-240V AC 50/60Hz 0.4 Amax
Operating time (Backlight off)
:
43 h
Rechargeable battery
:
Rchrg. battery optional - intern

Technical data - Verification

Verification by KERN possible
:
Yes
Verification class
:
III

Responsible Persons

Product manager
:
Thomas Buchholz

Prices & Discounts

List price
:
220.00 €
Warranty
:
24 mon

Technical data - Construction

IP protection indicator
:
IP65
Dimensions display casing (W×D×H)
:
268×115×80 mm
Wall mount
:
Yes
Material casing
:
Plastic

Technical data - Measuring system

Calibration method
:
Adjusting with external weight
Resolution (non verified)
:
60.000
Resolution (verified)
:
6.000
Weighing units
:
G;HJ;kg;lb;oz;PCS;tJ
Linearity (in dots)
:
3
Number of weighing ranges
:
2

Technical data - Environmental conditions

Maximum operating temperature
:
40 °C
Minimum ambient temperature
:
-10 °C
