Eyepiece Camera – USB KERN ODC 881
Available from stock

Specialists in microscopy for measurement, counting, documentation, archiving and image processing

List price
320.00 €

Camera type

USB3 Eyepiece camera - 23.2 mm

Camera resolution

5,1 MP

Sensor type

Aptina CMOS

Sensor size

1/2,8"

Standard
Description
  • With the KERN eyepiece cameras you can convert your standard microscope to a digital microscope, by replacing one eyepiece of your non-digital microscope with an eyepiece camera and connect this to your computer via USB.
  • The universal eyepiece can be connected to the microscope as well as to a laptop or PC using the USB cable (USB 3.0)
  • The power supply is through the USB cable, which means that no additional power supply is required
  • Your daily work is made significantly easier with the very best synchronisation, a high frame rate as well as stable image performance together with our Microscope VIS software which we deliver with the product.

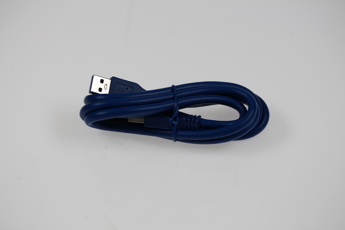

  • As well as the camera, the delivery includes our multi-lingual camera software Microscope VIS KERN OXM 902, a USB cable (length: 1,5 m) and an object micrometer to calibrate the software
  • Possible lens barrel diameters:
    23.2 mm (standard)
    30.0 mm (eyepiece adapter)
    30.5 mm (eyepiece adapter)
  • Camera resolution 5,1 MP
Specifications

Article codes, product groups & Status information

Model article-code
:
ODC 881
Model-Serie
:
ODC-88
Assortment
:
Optics
Product Type
:
Microscopes
Product group
:
Microscope cameras
Product usage type
:
Main article
EAN code (Model)
:
4045761246423
Predecessor Model
:
ODC 881-2019a
Planned start date
:
2020-2HJ
Customs tariff number
:
85258900
Product status
:
Active

Technical data - Primary

Camera type
:
USB3 Eyepiece camera - 23.2 mm
Camera resolution
:
5,1 MP
Sensor type
:
Aptina CMOS
Sensor size
:
1/2,8"

Technical data - Power supply

Protection Class
:
Class III - Low voltage
Cable attachment
:
Removable

Technical data - Packing & Shipping

Packaging component - by weight - paper
:
72.1 mg
Packaging component - by weight - cardboard
:
34.5359 g
Packaging component - by weight - plastics
:
504.7 mg
Packaging component - by weight - styrofoam
:
0 g
Packaging component - by weight - foam
:
36.9873 g
Delivery time
:
1 d
Dimensions packaging (W×D×H)
:
145×95×60 mm
Gross weight
:
0.50 kg
Net weight
:
0.45 kg
Shipping method
:
Parcel service

Technical data - Construction

Color capability
:
Colour
Camera mounting
:
Plug-in connection
Interfaces
:
USB 3.0
Opertaing system
:
Win 10;Win 11;Win 7;Win 8
Applicable software
:
External (OXM 902)
Dimensions (W×D×H)
:
56×32×32 mm

Technical data - Environmental conditions

Storage Temp Min
:
-5 °C
Stotage Temp Max
:
40 °C

Technical data - Verification

WEEE
:
Yes

Responsible Persons

Product manager
:
Alexander Beck

Prices & Discounts

List price
:
320.00 €
Warranty
:
24 mon
Services
No records found
Software
No records found
Downloads
Your KERN product specialist will be happy to help
